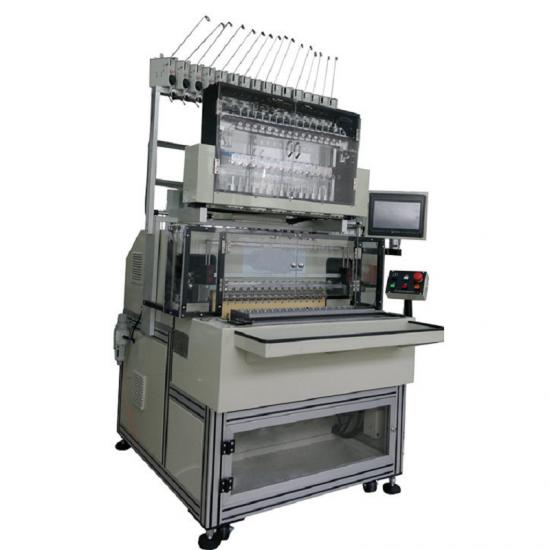

Fully Automatic Integrative Winding Machine

Full Automatic Integrative Winding Machine

1.The key components of Full Automatic Full Automatic Integrative Winding Machine are all imported from Japan, with strong reliability and high durability, which greatly increase the service life of the machine.

2.Novel design, simple structure, strong rigidity, easy operation and convenient maintenance.

3.Programming adopts computer or touch screen, which can be selected freely.

4.Unique design of quick joint fixture to reduce changeover time.

5.Needle-guide rod 0 °/90 °/135° optional installation, convenient for different multi-angle bobbin winding.

6.Use precision belt anti-tension control tensioner to make the product line more neat.

7.Functions of optional automatic loading and unloading, greatly save the winding time.

8.Functions of optional automatic tape wrapping, greatly improves production efficiency.

9.Functions of automatic wire clamping, wire breakage and waste wire removal.

10. Servo fingers and wire feeding device can easily realize the winding of three-layer insulated wire.

Technical Parameter:

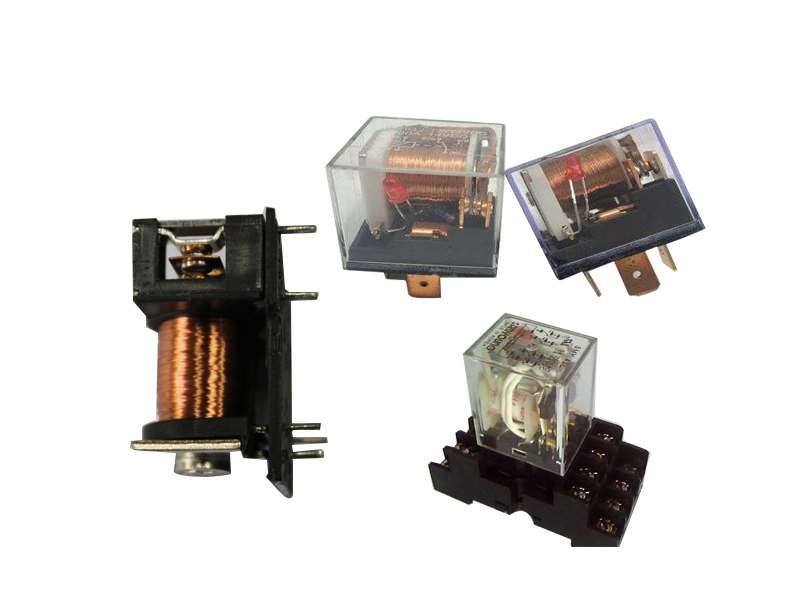

Applications: electronic transformer coils, solenoid valve coils, switching power supply coils, relay coils, ignition coils and other bobbin coils that need to be wound with tape.
